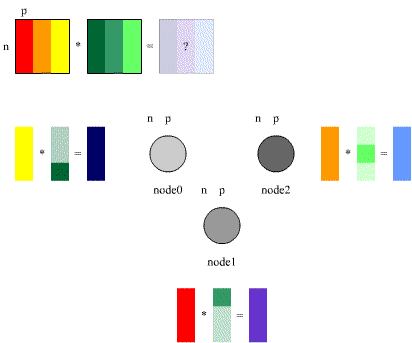

Example for square matrix multiplication in SPMD using 3 nodes.

The hole sequence.

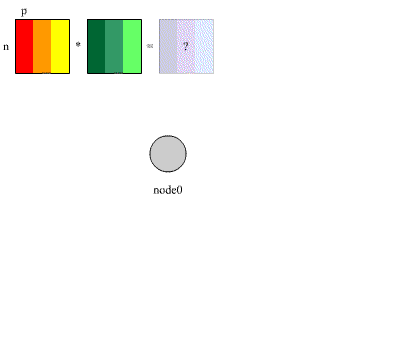

Step 1: Virtually split the matrix.

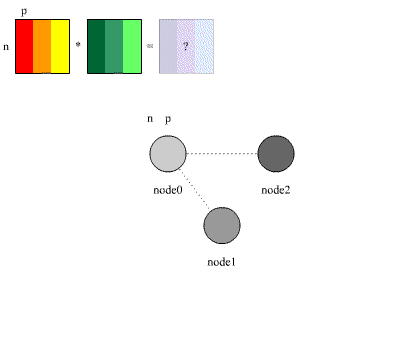

Step 2: Spawn other nodes.

Step 3: Configure all nodes.

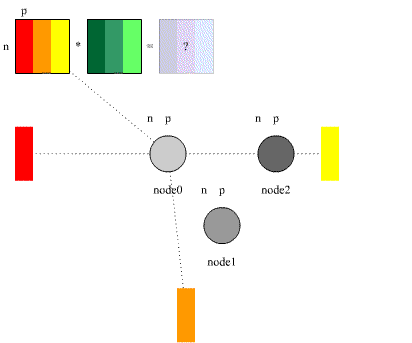

Step 4: Distribute A.

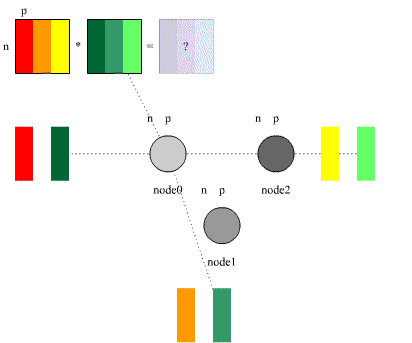

Step 5: Distribute B.

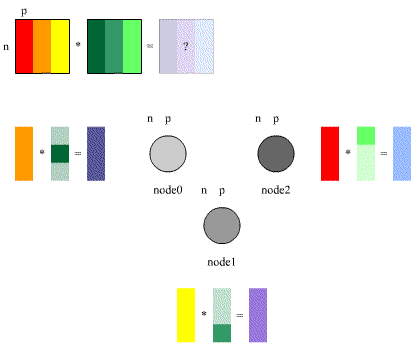

Step 6: Perform calculations.

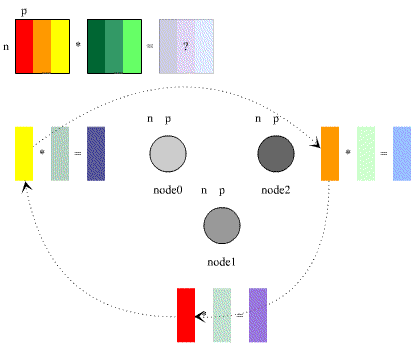

Step 7: Shift A.

Step 8: Perform calculations.

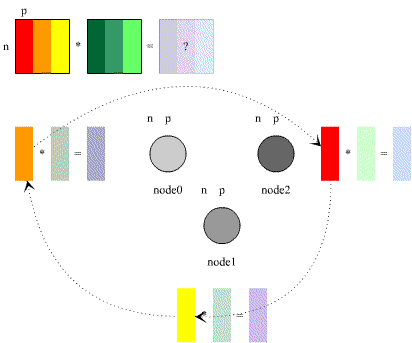

Step 9: Shift A.

Step 10: Perform calculations.

Step 11: Collect results.
